TVS3301DRBR
Manufacturer:
Texas Instruments
Mfr.Part #:
TVS3301DRBR
Datasheet:
Description:

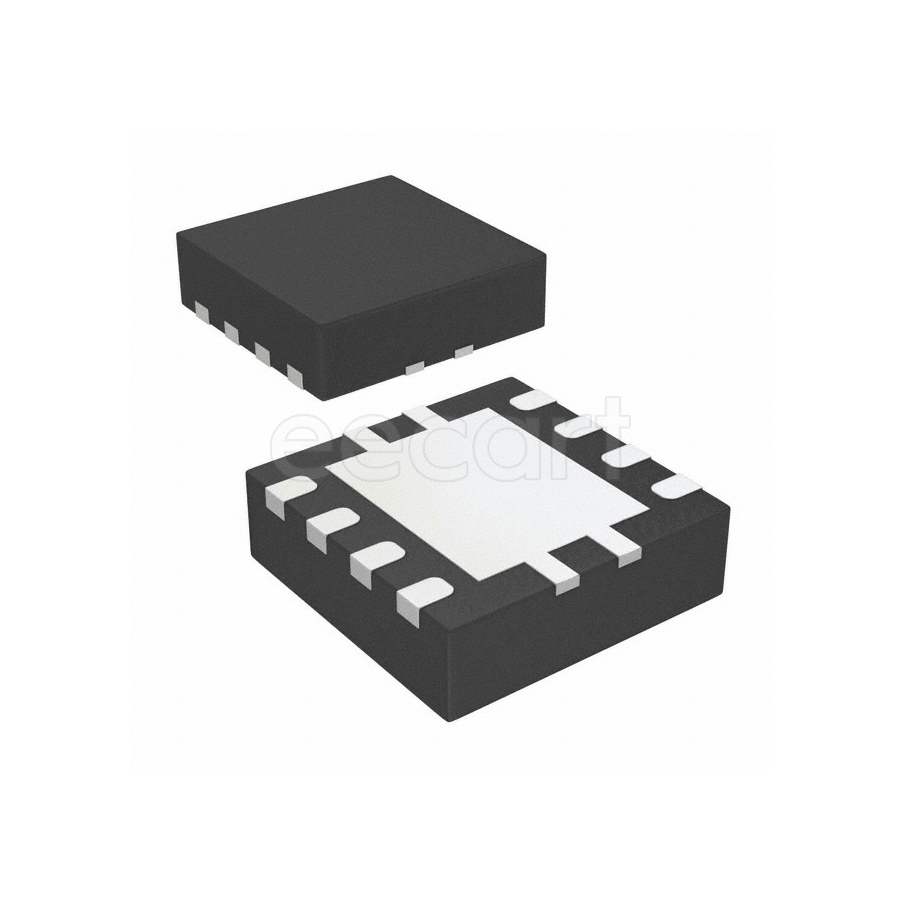

ESD and Circuit Protection ICs SON-8 SMD/SMT Working Voltage:33 V Breakdown Voltage:34.4 V 54 pF
| Parameter | Value |
|---|---|
| Capacitance | 54 pF |
| Length | 3 mm |
| Width | 3 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 1 mm |
| Thickness | 0.88 mm |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Ambient Temperature Range High | 125 °C |
| Peak Pulse Current | 27 A |
| Number of Channels | 1 |
| Breakdown Voltage | 34.4 V |
| Direction(Counting Sequence) | Bidirectional |
| Reverse Standoff Voltage | 33 V |
| Clamping Voltage | 40 V |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Working Voltage | 33 V |
| Voltage ESD Contact | 8 kV |
| Voltage ESD Air Gap | 15 kV |
| Diode Capacitance | 54 pF |
| Packaging | Reel |
| Polarity | Bidirectional |
| RoHS | Compliant |
Stock: 83
Distributors
pcbx
pcbxUnit Price$0.33171
Ext.Price$0.33171
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33171 | $0.33171 |
| 10 | $0.27443 | $2.74430 |
| 50 | $0.22355 | $11.17750 |
| 100 | $0.18210 | $18.21000 |
| 500 | $0.14106 | $70.53000 |
| 1000 | $0.12910 | $129.10000 |
| 3000 | $0.11114 | $333.42000 |
| 5000 | $0.09844 | $492.20000 |
| 10000 | $0.08720 | $872.00000 |
